LED displays are complex electrical systems combining power supplies and heat generating components. Making an LED display fireproof is a system-level strategy. This guide focuses on how LED displays are made to reduce fire risks by being fireproof.
Common Causes of Fire in LED Displays
· Poor Thermal Management
LED displays generate heat continuously from LEDs, power supplies, and control boards. Once internal temperatures rise, insulation degrades, solder joints weaken, and then the power supplies and cables experience insulation breakdown. The electrical resistance increases, generating even more heat, causing an ignition to occur.
· Electrical Faults
LED screens are high-current, continuous-load systems. However, when their power supplies are overloaded, voltage becomes unstable, insulation breaks down, and arcing begins. Fire spreads inside the enclosure before detection, and by the time the display goes dark, the cabinet may already be burning.
· Poor Quality Materials
Poor-quality materials turn minor faults into major incidents and manageable heat into uncontrolled combustion. Materials like inferior PCB substrates have poor thermal resistance where by under sustained heat, they carbonize, creating conductive paths that encourage arcing and sustained burning.
· Improper Installation and Maintenance
Improper installation and poor maintenance override every safety feature built into your display. Poor load balancing across phases, poor cable rooting and protection, inadequate grounding and bonding, or blocking ventilation paths increase fire risks.
Ways of Making LED Displays Fireproof
· Consider the LED Display Structure
Design your cabinets to resist deformation under heat, preventing exposure of live parts by use of materials such as aluminum or steel.
Separate power zones, control zones, and display modules with fire-resistant barriers that prevent flames and hot gases from spreading.
You must define intake and exhaust paths that are built into the cabinet structure to prevent hotspots that ignite materials.
Use fire-resistant gaskets at panel joints, sealed cable entry points with fire-rated bushings to help your cabinet turn into a containment system.
In short, a good LED display structure will prevent possible causes of fire in your system.
· Pay Attention to Standardized Electrical Wiring
Select cable gauge based on actual current, cable length, and ambient temperature. Consider low-smoke and halogen-free cables for your internal wiring.
Defining power zones with current limits, short balanced cable runs and give separate protection for each power branch to prevent one fault from overheating the entire system.
Also, use certified connectors rated for current and temperature with controlled terminals and strain relief to prevent movement and loosening. You can also learn more about LED display certification requirements.
Separate heat sources and moving parts by edge protection and grommets with minimum bend radius enforcement.
· Choosing Aluminum Alloy Enclosures
Aluminum alloy enclosures will conduct and spread heat across your cabinet surface, reducing localized hotspots that trigger insulation failure.
Remember, it is these LED display enclosures that maintain structural shape in higher temperatures, keeping electrical components mechanically isolated.
These enclosures will allow integrated compartmentalization, secure mounting of metal partitions, and reliable grounding and bonding.
· Choose Silicone-based Thermal Pads
Thermal pads work best when paired with aluminum alloy cabinets. This will help transfer heat directly into the cabinet structure and turn the enclosure into a passive heat sink.
The pads prevent heat from turning faults into ignition events by lowering junction temperatures and power components.
The silicone-based thermal pads offer stable thermal conductivity over wide temperature ranges and electrical insulation.
· Thermal Management Systems
You must monitor LED display temperature to ensure it is within the safe range. This is only possible if you adopt a practical thermal management system.
Real-time Temperature Monitoring
During LED display fires, a component overheats, insulation softens, wires degrade, and then short circuits occur. Real-time temperature monitoring allows you to detect hotspots in power supplies, trigger automated shutdown, and provide data for preventive maintenance.
This monitoring alerts operators before insulation fails as it triggers automatic shutdown or fan acceleration.
Cooling Systems
A good cooling system will keep your LED display below ignition thresholds and prevent thermal runaway.
| Active Cooling Systems | Passive Cooling System |
| Rapidly removes heat from hotspots preventing overheating and thermal runaway | Reduces localized heat accumulation and spreads heat across metal surfaces to slow temperature rise |
| Uses powered devices such as fans and blowers to move air and remove heat. | Relies on natural heat dissipation through conduction, convection, and radiation without moving parts |
| Often works with thermal monitoring for automated control | Relies on good structural design and material selection |
| Can maintain safe temperatures even under heavy power load | May fail in high-brightness or densely packed modules if airflow is limited |
· Power Management & Electrical Safety
UL-Certified Power Units
UL (Underwriters Laboratories) ensures that the power supply has been tested against fire and electrical hazards according to recognized standards. They work best when combined with other fire-conscious features like aluminum and silicone-based thermal pads for hot spot management.
Voltage Stabilizers
Voltage stabilizers are preventive fire-safety devices. They maintain consistent input voltage to power supplies, preventing overvoltage that pushes components beyond thermal limits. These stabilizers reduce current spikes that usually cause cable heating and minimize electrical stress during brownouts and surges.
Incorporating Redundant Power Systems
Redundant power systems reduce fire risk by eliminating overload conditions and preventing unstable electrical behavior during failures. Proper redundancy will lower operating temperatures per PSU and stabilize voltage during component failure.
Power Surge Protection System
A power surge protection system will help you prevent sudden energy spikes from turning wiring and components into ignition sources. It does this by clamping transient overvoltage to safe levels and diverts the surge energy to the ground. The protection system also prevents voltage spikes from reaching PSUs and modules and reduces arcing.
· Consider External Installation
Not Installing Close to Combustible Elements
Distance matter because LED displays radiate heat outward during continuous operation which may cause direct ignition during PSU or wiring failure. Not installing close to combustible elements will help you install fire barriers or shields between the display and structure. It will also ensure free airflow.
Lighting Protection
Lightning causes electrical arcing across connectors and PCB traces. When installing your LED outdoors, include air terminals to intercept direct strikes before they hit your display. Have a low impedance grounding system to provide a safe discharge path for lightning energy.
IP65/IP67 Rating (Waterproof)
IP65 rating will protect your LED display against water jets from any direction as IP67 will protect your display against temporary immersion in water.
· Regular Inspection & Cleaning
Regular inspection and cleaning keep thermal, electrical, and environmental risks from aligning into a fire. Do a serious inspection of the power supplies, wiring insulation, seals, gaskets, grounding, and surge protection devices.

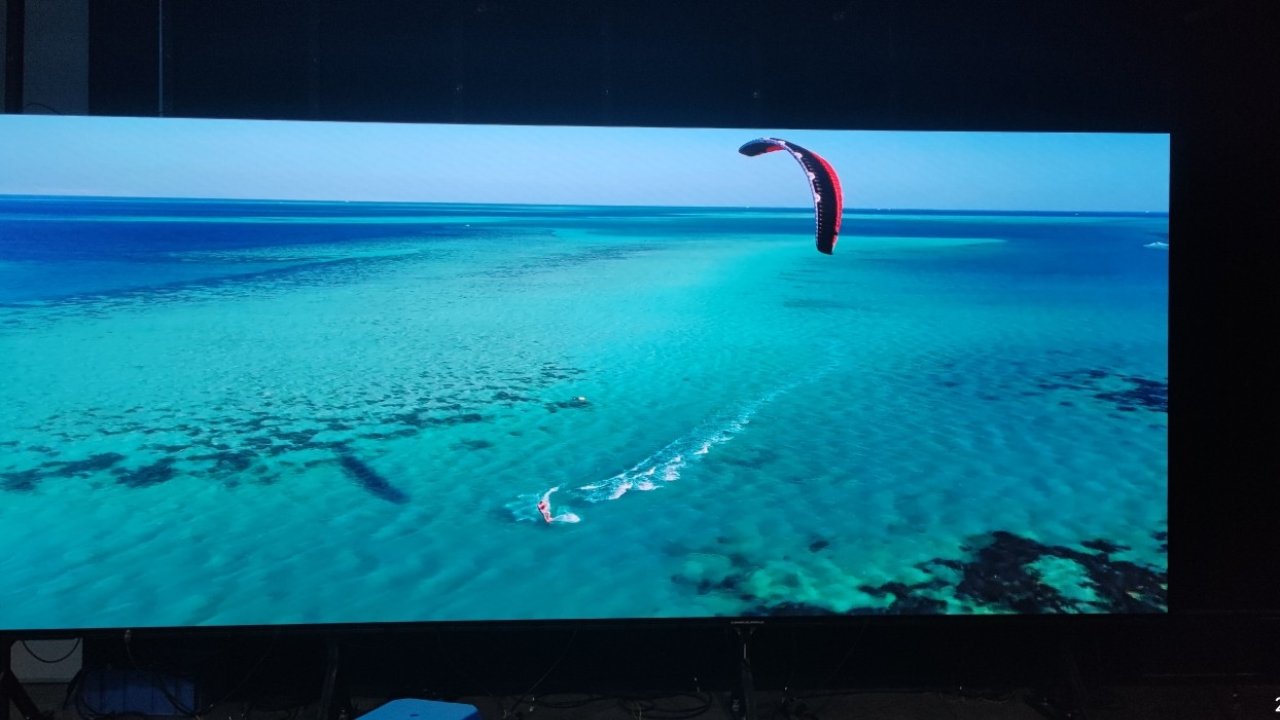

FAQs
Can LED displays catch fire?
Yes. LED displays can catch fire if poorly designed, badly installed, or neglected.
What causes short circuit in LED displays?
Short circuits in LED displays occurs when:
- Heat breaks down low-quality cable insulation
- There is poor ventilation in cabinets that can lead to condensation
- Loose or poorly made connections
- Improper power distribution design
How do you know if LED screen is fire-rated?
You will know an LED screen is fire-rated by verifying documentation, markings, and design.
Can LED displays burn-in?
Yes. They burn depending on the type of LED display and how it’s used.
Do LED displays get hot?
Yes. LED displays generate heat from power supplies, control boards and LED chips.
