Certified for Global Stage LED Projects
JingyLED LED Screen Stage Design Solutions
Our innovative LED display systems bring energy to concerts, festivals, corporate events, and theatrical performances. Whether you need flat, curved, or modular LED screen layouts, we offer fully customised solutions to meet your creative vision and venue requirements.
With high refresh rates, vibrant colour reproduction, and ultra-thin panels, JingyLED screens ensure seamless video playback and an immersive visual experience. From indoor to outdoor stages, we offer lightweight, easy-to-install, and fully scalable LED screens suitable for events of any size.
Benefits of Choosing Stage LED Screen From JingyLED
JingyLED’s stage LED screen products are packaged using COB technology, with pure colors, soft and non glaring, and good presentation effects.

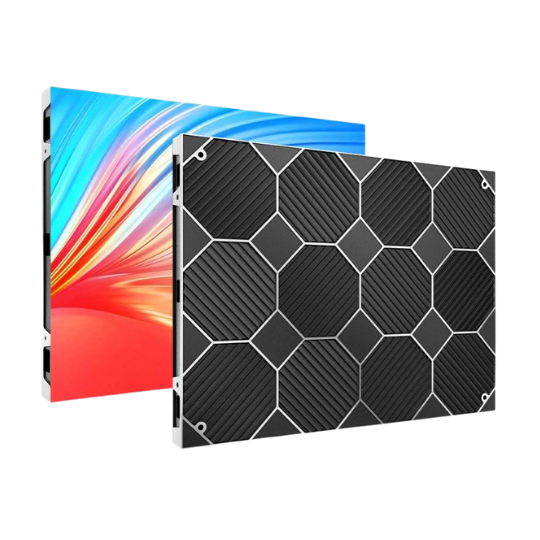

To accommodate the frequent setup and dismantling of stage events, our stage backdrop LED screen adopts a modular design that is easy to install and can be quickly disassembled.
The stage LED screen background is rated IP65, offering excellent heat dissipation and energy efficiency for extended operation, making it suitable for long-term operation.
JingyLED optimizes its production process and offers a variety of product specifications for customers to choose from within their budget. If you have more detailed requirements, we can provide you with customized LED screen for stage solutions.
Contact us and get a quote for your ideal stage background.
A flexible LED screen that can be curved to create an immersive stage design, enhancing the depth and visual impact of events.

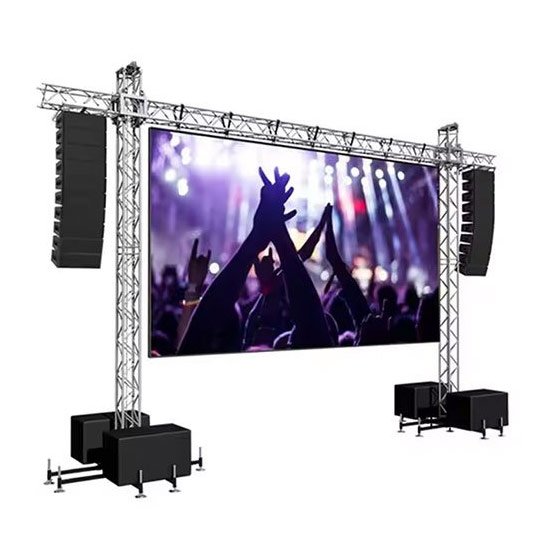

A big LED screen for stage that is ideal for use as a stage backdrop, providing vivid visual effects and dynamic content for live events and performances.
This cost-effective LED screen combines professional-grade performance with an affordable price, ideal for medium to small-scale events.
Usually, 500 × 500 mm or 500 × 1000 mm enclosures are used, emphasizing “quick assembly and disassembly” and “lightweight enclosures” for short-term touring activities.
A high-brightness LED screen designed specifically for concerts, ensuring that visual effects, animations, and special effects are clearly visible from all audience angles.
Suitable for indoor performance venues such as conference rooms, theaters, weddings, exhibitions, etc. P1.2-P4 pixel range, this type of screen has moderate brightness and presents a delicate and high-definition overall image
Used for outdoor activities such as concerts, outdoor festivals, sports events, etc. JingyLED’s products have a maximum brightness of 5000-10000 nits, IP65 protection level, and are waterproof and dustproof.
JingyLED supports non-standard forms such as curved and circular shapes. If there are more specific requirements, our stage LED screen factory with over 10 experience can accept customization to meet creative stage design and immersive visual effects needs.
Vibrant colors and smooth frame rate for films, Can be wall mounted. Great for advertisement and entertainment.
Has great dual remote control management from manual and digital, Has brightness control with heat dissipation.
Application can be added for indoor, Has automatic system that enhances both heat dissipation and temperature control.
Advertisement and entertainment application, personalized die casting material for panel and module for sturdy stand.
LED Screen on Stage Factory Overview
JingyLED stage LED screen factory continuously introduces cutting-edge manufacturing equipment and technology in the industry. The factory has more than 100 high-precision automation equipment, from PCB sampling, SMT dispensing to whole machine assembly and aging testing, achieving efficient and consistent production capacity control throughout the entire process. Our products have passed multiple international certifications such as CE and ETL, ensuring that they fully comply with global industry standards and have a service life of over 8 years.
JingyLED’s stage LED screen has a refresh rate of up to 3840Hz, supports 14 bit grayscale processing, and has no graininess or reflective impurities, achieving natural color reproduction and smooth images.
JingyLED Custom Service From the Excellent Stage LED Screen Supplier
JingyLED focuses on technology and provides high-quality and high-performance display solutions, which is our core business as a stage LED screen supplier.
Various layouts such as large curved screens, 360 immersive circular LED screens, ground or suspended screens that can be customized to fit the venue, or LED can be integrated into the stage architecture, such as LED lightbox walls, to enhance the stage experience.
Select different pixel spacing based on viewing distance, such as P1.9, P2.5, P3.9, etc., to ensure clear image and budget compliance.
JingyLED supports 500x500mm and 500x1000mm cabinet options, lightweight modules for quick installation and removal, supporting both front and rear maintenance for flexible site conditions, which is suitable for touring, flashing, and multi scene replacement.
Provides IP54-IP65 protection level, adapts to rainy and dusty environments, the screen is dust and water resistant, supports outdoor use, and is equipped with high brightness chips to ensure a visible experience under sunlight.
- Our Factory
- Technical Specifications
- Model Data Sheet
| Item | Options / Details |
| Product Name | Stage Led Screen |
| Pixel Pitch | P2.5 / P2.97 / P3.91 / P4.81 |
| Refresh Rate | 1920Hz / 3840Hz / Customizable |
| Brightness | Indoor Stage: 800 – 1200 Nits / Outdoor Stage: 4500 – 5500 Nits |
| Viewing Angle (H/V) | 160° / 160° |
| Operating Temperature | -20℃ – 60℃ |
| Power Supply | AC 100V – 240V |
| Connection Type | DVI / Wi-Fi / 4G / HDMI / Others |
| Control Platform | Cloud-based on Android / iOS app |
| IP Rating | Indoor S: IP30 / Outdoor S: Front IP65, Rear IP54 |
| Lifespan | Up to 100000 hours |
| Certificate | CE / RoHS / FCC / ISO9001 |
| Model | P6.67 | P8.33 | P10 |
| Module Size(mm) | 400×300 | ||
| Module Resolution(dot) | 60×45 | 48×36 | 40×30 |
| Scanning(s) | 1/6 | 1/4 | 1/3 |
| Encapsulation | SMD2727 | SMD3535 | SMD3535 |
| Maintenance | Front/Rear | ||
| Installation | Front/Rear | ||
| Cabinet Size(mm) | 1600×900 | ||
| Density(dot/m) | 22500 | 14400 | 10000 |
| Brightness(cd/m) | 6500 | ||
| IP Rate | IP65 | ||
| Refresh Rate(Hz) | 3840-7680 | ||
| Cabinet Weight (kg) | ≈52 | ||
| Cabinet Material | Die-cast aluminum | ||
| Grayscale | 14-16Bit | ||
| Frame Change Frequency(Hz) | 50/60 | ||
| Viewing Angle(V/H) | V>170°/H>170° | ||
| Best Viewing Distance(m) | >6.67 | >8 | >10 |
| lnput Voltage(V) | AC110V±15%/AC220V±15% | ||
| Max./Avg.power consumption(w) | 630/250 | 550/200 | 550/200 |
| Storage Temperature&Humidity(RH) | -20℃~60℃/10%～90% | ||
| Life Span(h) | ≥100,000 | ||
Stage LED screens typically range from $500 to $1,500 per square meter, depending on type (indoor/outdoor), pixel pitch, and design. Contact JingyLED for a custom quote based on your event size and screen specs.
Stage LED screens come in various sizes, typically ranging from 3×2m to 10×6m or larger. Common sizes include:
- Small stage: 3×2m, 4×2.5m
- Medium stage: 5×3m, 6×4m
- Large stage: 8×5m, 10×6m+
Custom sizes are available from JingyLED to fit different stage layouts and venue requirements.
Stage LED screen refers to LED display devices installed behind or on the side of the stage, used for background images, video playback, or animation display. JingyLED’s LED stage screen has features such as high brightness, high refresh rate, and wide viewing angle, which can perfectly match events such as concerts, theaters, weddings, etc., enhancing visual impact and improving the atmosphere of the scene.
Installing a backdrop LED screen typically involves the following steps.
- On site evaluation and structural construction
Measure the installation position dimensions, build steel frames or support structures to ensure load-bearing and stability.
- Power wiring and equipment power supply
Configure a dedicated distribution box, lay cables, and ensure proper grounding and overvoltage protection.
- Screen installation and debugging
Splice or hang modular LED panels piece by piece onto brackets, and connect data and power cables. Configure the control system and set the screen to be harmonious.
- Testing and Content Import
Upload playback content, check dead spots, color difference, and screen synchronization, confirm the effect is qualified, and then execute the formal activation.
- Maintenance and Security Assurance
Ensure the bracket is securely fixed, the wires are neat and orderly, the joints are waterproof and dustproof, and clear maintenance paths are left.
The approximate installation time will depend on the size of the stage LED screen background. If you still have any questions about the installation process, you can contact JingyLED for more information.
