Round LED Display – Your Ultimate FAQs Guide

What is a Round LED Display and How Does It Work?

Round LED displays refer to LED displays that are mainly in the form of a circle or ring. In terms of shape, it breaks through the limitations of the traditional rectangle. Due to its unique appearance, it is highly suitable for various scenarios such as advertising and performance stages.

The working principle of the round LED display is similar to that of a normal rectangular screen. It converts the signal into dot matrix data that the LED modules can recognize through the video processor, and then outputs specific images through the control system. The difference is that the video content sometimes requires special processing.

Which Parameters of a Round LED Display Can be Customized?

JINGYLED offers nearly all the customization of LED display’s details, mainly including:

• Screen shape and size: You can choose any shapes, like circular screens, curved screens, and spherical screens; its diameter and thickness can also be customized.
• Pixel pitch: We can provide you with P2.5, P3, P4 and even smaller pixel pitch.
• Brightness: For indoor use, we provide 800 to 1,500 nits; for outdoor use, we provide 2,000 to 10,000 nits or even higher.
• Installation method: Free-standing or vehicle, wall, floor, or ceiling-mounted.
• IP rating: We offer protection levels ranging from IP20 to IP68+.

Are Round LED Displays Suitable for Outdoor Installations?

Yes. We offer different solutions according to different usage environments. If you want to place the screen outdoors without a cover, we will focus on designing its protection level, brightness, diffusion structure, and casing material.

In terms of protection level, we will provide IP rating from IP54 up to IP65 or higher; for brightness, we usually offer a brightness of 5000 nits or higher, and also include an adjustable light function. It will also be equipped with a reliable cooling system, such as fans and heat sinks.

To prevent the module from being affected by moisture, during the installation process, we will also provide you with corresponding guidance and suggestions.

How to Choose the Right Pixel Pitch for a Circular LED Display?

Pixel pitch refers to the distance between the centers of two adjacent LED beads. It directly determines the clarity of the display screen.

The appropriate pixel pitch is mainly affected by the screen size and the viewing distance. The smaller the viewing distance, the higher the resolution of your display needs to be. For example, for viewing distances under 5 meters, P2.5–P4 is reasonable; for distances over 10 meters, you can choose P5 to P10.

When the pixel pitch becomes smaller, the cost of the screen will also increase. This requires considering your actual needs and budget.

Can Normal Videos or Images Play Properly on a Round LED Display?

When the formats are compatible, the regular content can be displayed on the round LED display. But this may cause the image to be distorted or cropped.

If you want the content to perfectly fit the screen, then you will need to make special adjustments to the adapted content. For instance, you can use graphic design software, such as Adobe After Effects, and create a circular safety zone for the content. Also, if you wish to customize a circular LED display, you can create the corresponding surround animation.

How to Choose the Brightness of a Round LED Display?

The appropriate brightness can make the screen look clear and not dazzling. We suggest that before confirming the brightness, you should first assess the placement environment, viewing distance, and energy-saving requirements.

The environment is the most important factor. The indoor environment is suitable for a brightness level of 1,500 nits or lower. The outdoor LED displays that will be exposed to direct sunlight are suitable for a brightness level of 5000 nits or higher.

Also, because of the different brightness in day and night, we can achieve the automatic brightness adjustment function for the screen.

Are Round LED Displays Energy-Efficient for Long-Hour Use?

Round LED displays are energy-efficient because LED technology uses less power than traditional screens.

The actual consumption depends on the LED type, brightness level, and refresh rate.

For outdoor use with high brightness, power use is higher. Indoors, with controlled lighting, it’s much lower.

Many displays have automatic brightness adjustment, which helps save energy by adapting to ambient light and time of day.

This also reduces heat, protecting the electronics.

Properly setting the brightness and knowing how long the display runs are important. Good use and maintenance can extend its life and save electricity.

With proper management, round LED displays can operate for long hours without using too much power.

What is the Typical Lifespan of a Round LED Display?

When the lifespan is ending, the LED will not suddenly turn off. As the usage time increases, it will become darker and darker. In most cases, LED lifespan is measured by the L50 standard. Under ideal conditions, the LED chips with high quality can last more than 100,000 hours. If it runs 24 hours a day, it can last more than 10 years.

However, apart from the quality, the actual lifespan of LEDs also depends on factors such as heat dissipation design, maintenance frequency, etc. If you maintain it properly, the screen’s life will be closer to the theoretical lifespan.

How to Maintain a Round LED Display? Is It Difficult?

The maintenance method for circular or ring-shaped screens is similar to that of ordinary LED screens. The items that you need to maintain are:

• Routine cleaning: The LED screen attracts dust when it runs. You need to clean it in time.
• Inspect the power and signal: You can check the power and signal cables regularly to make sure they are stable.
• Check whether there are dead pixels: If there are dead or bad pixels, you need to replace the corresponding module.
• Check for waterproof sealing: For outdoor screens, you also need to check the waterproofing of the cabinet regularly.

Can a Round LED Display Connect to Media Players, Software, or Live Feeds?

Round LED displays can connect to various media players and software, making them versatile for many uses.

You can manage content in real time—upload videos, images, or announcements from anywhere.

They can also show live feeds, perfect for events or conferences, so people far away can watch the action live.

Using compatible software, you can schedule content ahead of time—like playing an ad for an hour, then switching to a video for the next.

This means you don’t need someone constantly updating the display.

Overall, the connection options give round LED displays flexibility and control, ideal for dynamic, interactive environments.

What Should I Check Before Buying a Round LED Display?

We suggest that you clarify these details before making the purchase:

• Screen technical parameters: Including brightness, color gamut, resolution, and refresh rate.
• Screen structure and shape: Tell us the size and shape you need.
• Operating environment and protection level: The IP rating should correspond to the environment.
• Technical support and after-sales service: Generally, we provide three to five years of after-sales service.
• Whether the total price is within the budget: If it exceeds the budget, we will offer you some suggestions to reduce costs.

How Much Does a Round LED Display Cost?

The cost and price of a round LED display are determined by its technical specifications. The main factors affecting cost are pixel pitch, brightness, shape, size, protection level, and control system. The better these performances are, the higher the screen cost will be.

In general, a round LED display with a diameter of about 1.5 meters, low brightness, and a pixel pitch of P4, has a cost of less than $5,000; the one with a diameter of 5 meters, high brightness, and a pixel pitch of 5mm, costs more than $20,000.

How Long Does it Take to Manufacture a Custom Round LED Display?

The production process and duration of the Round LED display are as follows:

• The design and confirmation of the production plan: 2 to 3 days.
• Production, assembly, and joining of LED modules: about 30 days. This step depends on the complexity of the structure.
• Screen debugging: 2 days or longer.
• Quality inspection and packaging: about 3 days.

In general, from order to delivery, the production cycle of a round LED display is about 40 days. The construction time may be longer or shorter depending on the screen complexity.

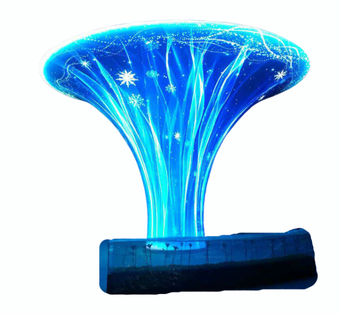

Can a Round LED Display be Integrated Into Creative or Irregular LED Structures?

Yes. In addition to circular, we also support annular, semi-circular, spherical, or curved surface structures. We guarantee that the screen size error is very small. You can join them freely, and with no seams. Also, we can achieve precise pixel alignment, and ensure that images or videos do not experience misalignment or breakage.

Whether you want to use the screen for a stage, exhibition, or mall, we can make it display content perfectly and create higher revenue for you.
