Certified for Transparent LED
Transparent LED Screen Manufacturers
JingyLED is a leading original engineering manufacturer (OEM) of transparent LED screens. Our innovative see-through displays are used for everything from advertising to decoration and information sharing in a corporate setting.
Instantly modernize office, hotel, or other venue interiors with our high-performance displays.
We offer a range of weatherproof options for reliable, long-lasting outside installations.
Our ultra-thin LED film has adhesive backing and can be cut to any shape or size.
For permanent display features, we provide several durable mounting options.

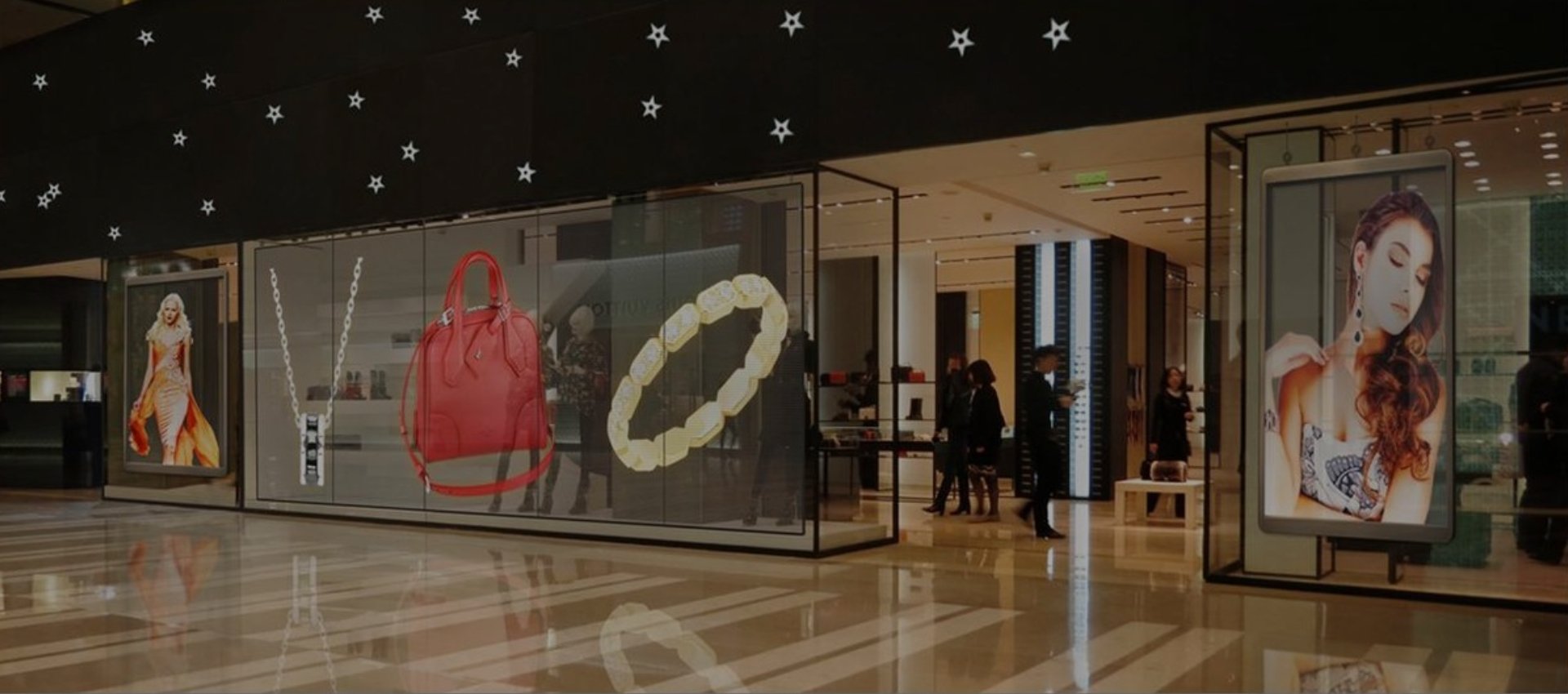

Transparent LED Screen Applications
JingyLED transparent LED screens are perfect for large-scale installations on high rise buildings like hotels and offices. Our smaller screens are also widely used everywhere from nightclubs and bars to shopping malls and public spaces.

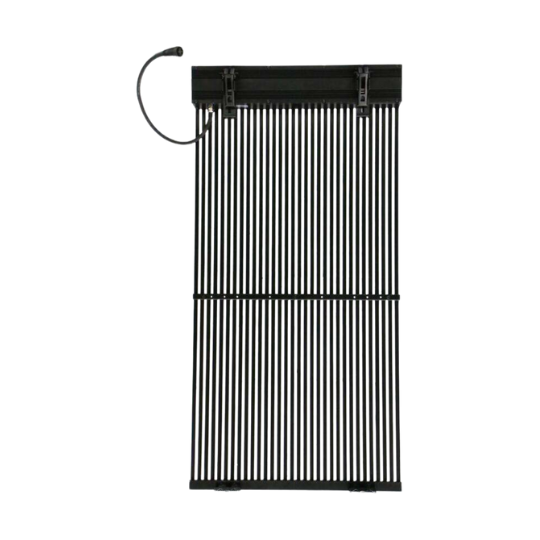

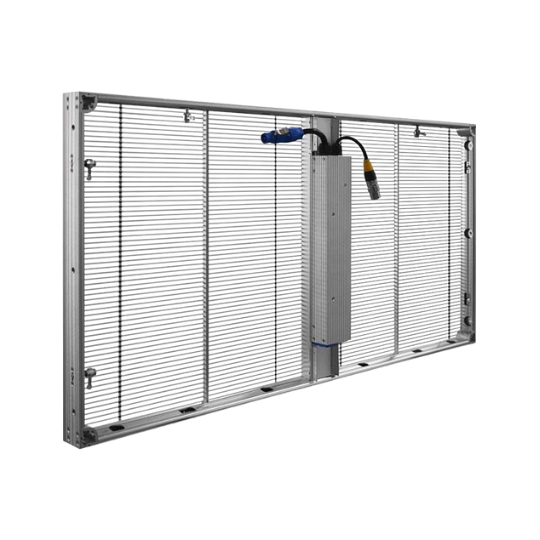

Types Of Transparent LED Screens
We manufacture a massive variety of see-through LED displays for industries across the board. Contact our friendly team today to discuss the specific requirements for your transparent screen, and we’ll get to work on a unique CAD drawing to meet your needs.
Our see-throuh, portable displays are ideal for office presentations.
Our bendable screens can be used to create stunning ribbon displays.
For close-up viewing, we offer see-through LED displays from P1 and up.

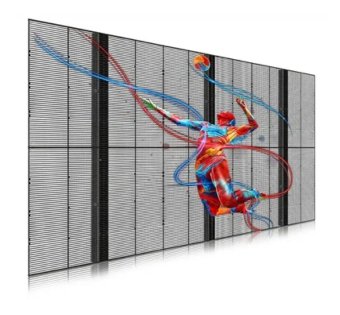

These super-sleek, versatile panels can be installed horizontally or vertically.
Ideal outdoor display and has strong compatibility to large projects. Great quality control for resolution.
Has a rollable function with the pliable structure that ensures damage is less impactful.
High-quality and great control of resolution. A digital poster that has frame control that is smoothened.
Great resolution control and brightness control. Best advertisement or entertainment video of frame.
Translucent and very pliable for any indoor application, Whether you prefer advertisement or informative ways.
Naked-eye 3D control and strong capability, has long duration lifespan and waterproof function
Quick And Easy Installation
We produce transparent LED screens that can be installed behind, in front, or integrated into glass windows to turn any building into an iconic city landmark. Our displays can be fitted retroactively, or let us know if you need a product that functions as a building material.
Technical Details
- LED Chips: DIP, double DIP, or SMD.
- Pixel Pitch: From P1 to P20 or more.
- Brightness: From 500 up to an dazzling 12,000 nits.
- Transparency: Maximum 95% transparency.
- Viewing Angle: Up to 160° vertically and horizontally.
- Frame Colors: White, Black, Grey, no frame, custom.
Our 5 Step Process
- Send us your requirements.
- Receive a free tailored quote.
- Customize the design.
- We produce your transparent screens.
- Each display is tested before it’s shipped to your door.
Outstanding Performance Without Compromise
We use cutting-edge LED technology to manufacture some of the top transparent digital displays on the market. Our designs are engineered with a thin profile using high quality components for a modern look that blends in with existing architecture, so you don’t need to sacrifice aesthetics.
UHD Transparent LED Screens
Our transparent LED screens give you the best of both worlds. Natural light can pass through, keeping interiors bright and airy, while outside viewers get a crystal clear digital display in ultra-high definition.
Futuristic Marketing Tool
JingyLED transparent displays are a fantastic way to modernize any space, from retail stores to public buildings. Our see-through video walls support all major media formats, including videos and graphics for an impressive hologram display that’s sure to capture attention.
- Our Factory
- Technical Specifications
- Model Data Sheet (Outdoor)
- Model Data Sheet (Indoor)
| Item | Options / Details |
| Product Name | Transparent LED Display |
| Pixel Pitch | Indoor: P1.9-3.9 / P2.8-5.6 / P3.91-7.81 | Outdoor: P3.91-7.81 / P10.4 |
| Refresh Rate | 3840Hz+ |
| Brightness | Indoor: 800 – 1200 Nits / Outdoor: 4000 – 10000 Nits |
| Transparency Rate | 60% – 90% |
| Viewing Angle | 160° / 160° |
| Operating Temperature | -20℃ – 60℃ |
| Power Supply | AC 100V – 240V |
| Connection Type | DVI / Wi-Fi / 4G / HDMI / Others |
| Control Platform | Cloud-based on Android / iOS app |
| IP Rating | Indoor: IP30 | Outdoor : Front IP65 / Rear IP65 |
| Lifespan | Up to 100000 hours |
| Certificate | CE / RoHS / FCC / ISO9001 |
| Model | P3.91-7.81 | P7.81-7.81 | P5.2-10.42 | P10.42-10.42 | P15.625-15.625 | P31.25-31.25 |
| Module Size(mm) | 500×125 | |||||
| Module Resolution(dot) | 128×16 | 64×16 | 96×12 | 48×12 | 32×8 | 16×4 |
| Scanning(s) | 1/8 | 1/8 | 1/4 | 1/2 | 1/1 | 1/1 |
| Encapsulation | SMD | |||||
| Maintenance | Front/Rear | |||||
| Transparent Rate | 62% | 70% | 72% | 75% | 80% | 85% |
| Cabinet Size(mm) | 1000×500 | |||||
| Density(dot/m²) | 32768 | 16394 | 18458 | 9210 | 4096 | 1024 |
| Brightness(cd/m) | 4000-5000 | |||||
| IP Rate | IP65 | |||||
| Refresh Rate(Hz) | 3840-7680 | |||||
| Cabinet Weight (kg) | 9 | |||||
| Cabinet Material | Aluminum | |||||
| Grayscale | 14-16Bit | |||||
| Frame Change Frequency(Hz) | 50/60 | |||||
| Viewing Angle(V/H) | V160°/H160° | |||||
| Best Viewing Distance(m) | >4 | >8 | >5 | >10 | >15 | >31 |
| Input Voltage(V) | AC110V±15%/AC220V±15% | |||||
| Max./Avg.power consumption(w) | 800/300 | |||||
| Storage Temperature&Humidity(RH) | -30℃-+50℃/10%～80% | |||||
| Life Span(h) | >100,000 | |||||
| Model | P2.6-5.2 | P2.8-5.6 | P3.91-7.81 | P3.91-7.81 | P10.4 |
| Module Size(mm) | 500×125 | ||||
| Module Resolution(dot) | 384X192 | 352X176 | 256X128 | 256×128 | 96×96 |
| Scanning(s) | 1/12 | 1/11 | 1/8-16-32 | 1/7 | 1/2 |
| Encapsulation | SMD SMD SMD SMD SMD | ||||
| Maintenance | Front/Rear | ||||
| Transparent Rate | 55% | 58% | 62% | 68% | 75% |
| Cabinet Size(mm) | 1000X500/1000×1000 | ||||
| Density(dot/m²) | 73728 | 61952 | 32768 | 32256 | 9216 |
| Brightness(cd/m) | 650-800 3000-4000 | 800-1200 3500/4200 | 1500/2500/4500 | 4800-5500 | 4000-4500 |
| IP Rate | IP31 | ||||
| Refresh Rate(Hz) | 3840 | ||||
| Cabinet Weight (kg) | 8 | 8 | 7.5 | 7.5 | 7.5 |
| Cabinet Material | Aluminum | ||||
| Grayscale | 14-16Bit | ||||
| Frame Change Frequency(Hz) | 50/60 | ||||
| Viewing Angle(V/H) | V160°/H160° | ||||
| Best Viewing Distance(m) | >2.5 | >3 | >4 | >4 | >10 |
| Input Voltage(V) | AC110V±15%/AC220V±15% | ||||
| Max./Avg.power consumption(w) | 600/300 | 600/300 | 400-600/200-300400-600/200-300 600/250 | ||
| Storage Temperature&Humidity(RH) | -10℃~60℃/10%～90% | ||||
| Life Span(h) | >100,000 | ||||
What To Expect From JingyLED
When you choose JingyLED for your project, you’re getting a true partner that’s invested in your success. Our team consists of industry experts and highly qualified engineers, operators, and advisors with decades of experience designing and manufacturing world-class transparent display solutions.
“Our transparent LED film was delivered much faster than I expected and the packaging was very secure. It only took 2 workers to apply it to the escalator glass. The cloud-based management works flawlessly so far. I will use JingyLED for future orders.”
We deliver bespoke transparent screens with your custom specifications and features.
Our quote turnaround time is 1 business day, and we aim to schedule manufacturing ASAP.
Your transparent LED displays will be carefully shipped by reliable couriers to your doorstep.
All our displays meet and exceed international regulatory standards, including CE.
Frequently Asked Questions
We have extensive manufacturing capabilities in our production facilities in China, so we can create whatever type of screen you need. Popular options include semi-transparent LED (a type of LCD) screens for internal walls and windows, small digital poster screens that are great for rental, transparent monitor walls you can see through, and embedded glass which has an electroluminescent effect. This means it’s clear when not in use and lights up when switched on.
Yes, the process of how to make a transparent led screen comprises of several complex steps. It’s not like a projector for home. Your account manager will keep you informed throughout the process so you’ll be able to see how your order is progressing at every stage.
Because our screens are custom, the cost varies. For example, a clear LED wall for a DIY trade show exhibition will differ compared to a transparent OLED display price. Please get in touch for a 100% free and tailored quote.
Yes! We can create 360 digital signage that can be viewed from inside and outside a building to maximize visibility. We also manufacture 3D effect LED screens for the extra wow-factor, and micro screens for POS stations and retail shelving.
We ship globally! Our recent orders include clients in India, the USA, Dubai, Pakistan, and further afield. Please submit your online inquiry today so we can provide you with an accurate shipping quote.
